I remember the first time I set up a client’s office network. I grabbed a random Ethernet cable from the closet, plugged it into the blue port on the back of their router, and watched the lights on their PCs go dark. It was a classic mistake. You grab the first available Ethernet cable, plug it into a port that looks identical to the others, and suddenly your internet dies. This happens more often than you’d think because the physical difference between a lan wan port setup is often non-existent to the untrained eye.
The confusion stems from the fact that LAN (Local Area Network) and WAN (Wide Area Network) ports on a router look physically similar—usually just rectangular RJ-45 jacks. However, their functions are opposite. A LAN port connects your local devices, like laptops and printers, to the router. A WAN port is the single entry point where the router connects to the outside world, specifically your Internet Service Provider (ISP). In this guide, we will break down the visual cues to identify these ports and provide a step-by-step logic to wire your network correctly, avoiding the common "network loop" disaster that causes total outages.
Understanding the Core Difference: LAN vs WAN Ports
To stop confusing yourself with the wiring, you need to understand the logical flow of data. The difference between lan and wan port functionality isn’t just about the label; it’s about where the IP address comes from and who is allowed to speak to whom.
What is a LAN Port? (Local Area Network)
Think of the LAN side as your "living room." It’s private. When you plug a desktop PC, a game console, or a smart TV into a LAN port, the router acts as a DHCP server, handing out private IP addresses. These addresses typically fall into the reserved ranges defined by RFC 1918, such as 192.168.1.x, 192.168.0.x, or 10.x.x.x.
In my 15 years of networking, I’ve found that beginners often underestimate how critical the LAN side is for internal speed. Most modern consumer routers come with four Gigabit Ethernet LAN ports. This means you can connect up to four wired devices without them sharing a single bandwidth pipe; each gets its own dedicated 1 Gbps channel. If you exceed four devices, you usually need to add an unmanaged network switch to expand the port count.
What is a WAN Port? (Wide Area Network)
The WAN side is your "front door." It’s the only bridge between your private living room and the public street (the Internet). This port connects to your ISP’s equipment, which could be a cable modem, a fiber optic terminal (ONT), or a DSL modem.
Here, the logic flips. The WAN port handles public IP addresses assigned by your ISP. It also acts as the boundary for your firewall. By default, your router refuses incoming connections from the WAN side to any specific device on the LAN side unless you explicitly allow it via port forwarding. For the average home user, you will likely only see one WAN port on your router. It’s designed to accept an upstream signal and distribute it to the internal LAN.
Visual Identification: Color Coding and Labels
So, how do you spot them without checking the manual? Manufacturers use color coding to save you time.
- WAN Port: Often colored blue, black, or orange. It is frequently physically separated from the cluster of LAN ports. Look for a label that says "Internet" or "WAN."
- LAN Ports: Usually clustered together and colored yellow, white, or green. They are typically labeled "LAN 1," "LAN 2," etc.
[Visual Placeholder: A close-up photo of a typical TP-Link or Netgear router back panel. The single blue port on the left is labeled "Internet/WAN," and the four yellow ports on the right are labeled "LAN 1-4." Arrows point to the distinct physical separation between the two groups.]
If your router lacks color coding, lean on the text labels. "Internet" always means WAN. "LAN 1-4" means local connections. Never rely on a cable’s color to determine the function; a yellow cable can carry a WAN signal just fine. The port on the router determines the role.
Step-by-Step: How to Connect Modem to Router WAN/LAN
Knowing which port is which is only half the battle. The other half is executing the connection correctly. I’ve seen technicians spend hours troubleshooting "no internet" issues that were actually just a cable plugged into the wrong jack. Here is how to connect lan wan port wiring the right way, every time.
The Standard Connection Path
Before touching a single cable, make sure your ISP modem or ONT is powered on and its status lights are stable (usually green or solid white, not blinking red). Here is the standard workflow:
- Power Up the Upstream Device: Ensure your modem/ONT has completed its boot sequence. If it’s a cable modem, wait for the "Online" or "Internet" light to turn solid.
- Connect Modem to Router WAN: Take a standard Ethernet cable (Cat5e or Cat6) and plug one end into the modem’s LAN port and the other end into your router’s WAN (or Internet) port. This is the most critical step.
- Connect Devices to Router LAN: Now, take separate Ethernet cables to connect your PC, console, or printer to any of the free LAN ports on the router.
Crucial Rule: For standard internet access, never plug the main modem cable into a LAN port on the router. Doing so creates a network conflict where the router cannot properly NAT (Network Address Translate) traffic to the internet.
Connecting Devices to LAN Ports
Once the WAN link is established, your LAN ports become active. You can connect any device that supports Ethernet: desktops, smart TVs, media servers, or even another switch.
A common question I get is about chaining routers. If you want to connect a second router to a first one to extend range, you should not connect a LAN port on Router A to a LAN port on Router B unless you are in "Access Point" mode. If both routers have their DHCP servers active, you create a network where two gateways are fighting for control. This causes IP address conflicts and devices randomly losing internet access. Instead, connect Router B’s WAN port to Router A’s LAN port, or disable DHCP on Router B and use a LAN-to-LAN connection if you are just extending the same subnet.
Troubleshooting: What if I Plugged Into the Wrong Port?
Let’s address the two most common miswiring scenarios. I’ve had clients call me in a panic saying their internet is down, only to find the cable in the wrong port.
Scenario A: Modem plugged into a LAN port.
- Result: The router might establish a local network (LAN devices can talk to each other), but none of them will have internet access. The router is waiting for an IP on the WAN side, but it’s not receiving one.
- Fix: Move the cable from the yellow LAN port to the blue WAN port.
Scenario B: PC plugged into the WAN port.
- Result: Your PC will likely show "No Internet Access" or "Limited Connectivity." The WAN port expects a gateway signal, not a client device. It won’t assign an IP to your PC.
- Fix: Move the PC cable to a free LAN port.

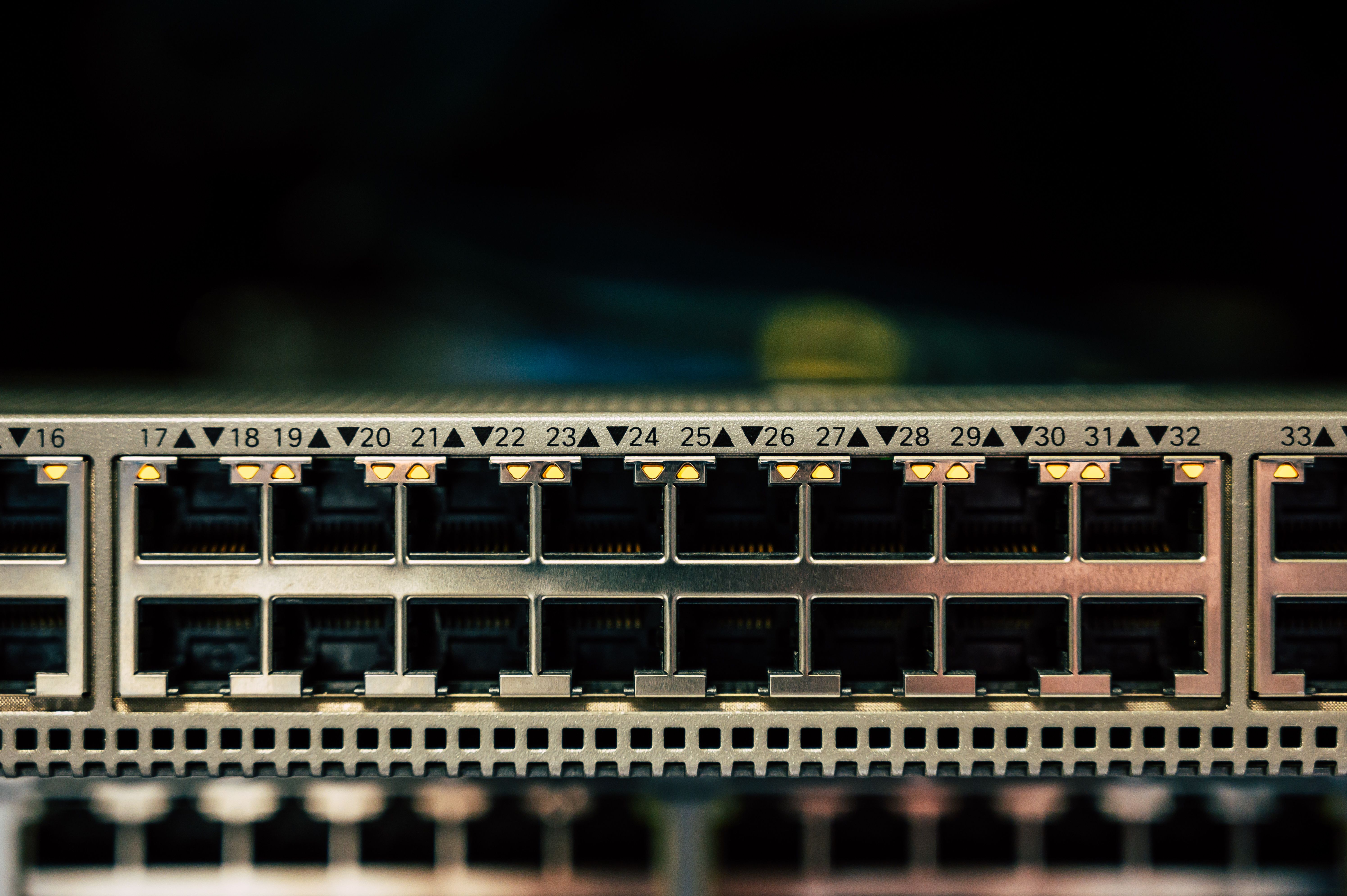

Diagnostic Tip: Check the LED lights next to the ports. A lit solid or blinking light means a physical link is established. A dark light means the cable isn't connected, the port is disabled, or the device on the other end is powered off.
Advanced Tips: Swapping Ports and Multi-WAN Configurations
Now that you understand the basics, let’s talk about flexibility. Can you change which port does what? Or what if you have two internet connections?
Can You Use a LAN Port as a WAN Port?
If you are standing in front of a basic, off-the-shelf router from a big-box store, the answer is usually "no." The hardware is wired such that Port 4 is always a LAN port. However, I have worked with advanced consumer and prosumer gear where this is not true.
Brands like UniFi (Ubiquiti) and TP-Link Archer Pro series routers allow "Port Repurposing" or "Port Switching" via their admin dashboards. You can log in, navigate to the network settings, and literally swap the function of a physical port. For example, you might have three internet lines but only two built-in WAN ports. You can repurpose a LAN port to act as a third WAN port.
Why would you do this?
- Load Balancing: Distributing traffic across multiple ISPs.
- Port Shortage: If all four LAN ports are full, but you need to add a second ISP line, you can turn a LAN port into a WAN port (sacrificing one local connection slot).
On basic routers, if your LAN ports are full, your only option is to buy a separate Ethernet switch to expand your local connection count.
Multi-WAN Port Routers: Load Balancing & Failover
If you are a power user, gamer, or home office pro, you might have dual internet connections (e.g., Cable and Fixed Wireless). This is where Multi-WAN setups shine.
Most standard single-port routers cannot handle two active upstream connections simultaneously. You need a router with multiple WAN ports or one that supports "Multi-WAN" logic. The benefits are specific:
- Failover: If your primary cable internet goes down, the router automatically switches traffic to your backup 5G line or second cable connection. You barely notice.
- Load Balancing: The router distributes traffic. You download a large file on one line while streaming 4K video on the other, maximizing your total bandwidth.
This addresses the "single port router wan lan" limitation for users who need reliability. It’s not about speed in a single thread; it’s about redundancy and aggregation.
Gigabit Speeds: Is There a Difference?
A frequent question is whether the WAN port is faster than the LAN ports, or vice versa. In modern routers, the physical speed is usually identical. A 2026 router might have four 2.5 Gbps LAN ports and one 2.5 Gbps WAN port.
However, the effective speed differs based on your ISP. If you have a 1 Gbps internet plan, your WAN port is capped at 1 Gbps regardless of whether it supports 2.5 Gbps physically. The LAN side, however, operates at full local speed. If you move a 10GB file from a NAS to a PC, you might push 900 Mbps+ on the LAN wire, even if your internet connection is only 200 Mbps. The difference is logical (public vs. private bandwidth) rather than just physical. Always check your router’s specs to see if the LAN ports match the WAN speed; some budget routers have 1 Gbps WAN but 10/100 Mbps LAN ports, which is a bottleneck you want to avoid.
Common Pitfalls: Avoiding Network Loops and Failures
Even with the correct wiring, networks can fail in catastrophic ways. I’ve spent many a Friday evening fixing "network loops" that took down entire home offices. Here is how to avoid the router wan port not working with lan scenarios that are actually self-inflicted.
The Danger of Network Loops
A network loop occurs when you create a closed circle of Ethernet connections without a device to manage the traffic (like a switch with Spanning Tree Protocol).
The Classic Mistake: You have Router A (Main) and Router B (Secondary).
- You plug an Ethernet cable from Router A's LAN port to Router B's LAN port.
- Both routers are running with their default settings, meaning both have their DHCP servers ON.
The Result: You have created two gateways fighting for the same IP space. Devices will connect to one router, then lose connection, then connect to the other. This causes:
- Broadcast Storms: Traffic gets amplified as it bounces between the two routers, consuming all bandwidth.
- IP Conflicts: Two devices might get the same IP address from two different DHCP servers.
- Flapping Links: Your internet feels like it’s on and off in rapid succession.
The Solution: Always disable DHCP on the secondary router (Router B) if you are connecting them in a daisy-chain. Or, if your routers support it, connect Router B’s WAN port to Router A’s LAN port. Never connect two active LAN ports to each other without configuring one to be a switch or access point.
When WAN Port Not Receiving LAN Signal
Sometimes, you have wired everything correctly, but the WAN light stays off. This is a "no link" state. Here is my troubleshooting checklist for this specific issue:
- Check the Cable: Ethernet cables are fragile. The clip on the end often breaks, and the plastic housing cracks, causing intermittent faults. Swap the cable.
- Check the Modem/ONT: Is the light on the modem’s side lit? If the modem’s port is dead, the router can’t detect a link. Restart the modem.
- Firmware Glitch: Rarely, a router’s port detection logic gets stuck. A power cycle (unplugging the router for 30 seconds) can reset the hardware handshake.
- Auto-Negotiation Mismatch: In very old setups, a mismatch in speed settings (e.g., forcing 100Mbps on a 1Gbps link) can stop a link from coming up. Modern gear handles this automatically, but if you are using 10-year-old cables, check for crimping issues.
If the WAN port has no signal, the router cannot acquire a public IP from the ISP. Consequently, no device on the LAN will have internet access, even if their local lights are green. This is a common point of confusion: green LAN lights only mean the local wire is good; they do not guarantee internet access.
FAQ
What is the difference between a LAN and a WAN port? Think of it as a house. The LAN port is like the internal hallways connecting your bedroom, kitchen, and bathroom; they allow you to move around the house (local network) privately. The WAN port is the front door; it’s the only place where the outside world (the Internet) can enter or leave. LAN uses private IPs; WAN uses public IPs.
Which port should I plug the internet cable into? Always plug the cable coming from your modem, ONT, or ISP box into the port labeled "WAN" or "Internet." This is typically the blue port on most routers. If you plug it into a yellow "LAN" port, the router will not know how to route traffic to the internet, and you will have no web access.
Can I use a LAN port as a WAN port? On basic consumer routers, no. The hardware is fixed. However, on advanced routers (like UniFi, MikroTik, or TP-Link Archer Pro series), you can access the admin interface and reconfigure a LAN port to function as a WAN port. This is useful for multi-ISP setups or when you run out of LAN ports.
Why does my router have a different color for the WAN port? It’s a user-friendly design choice to prevent miswiring. Manufacturers use distinct colors (blue for WAN, yellow/white for LAN) so that you can identify the correct port by sight, even in a dark closet, without needing to read the technical manual. It’s a safeguard against the most common home network error.
Conclusion
At the end of the day, the logic is simple: WAN = Internet Entrance, LAN = Device Connection.
Miswiring the LAN and WAN ports is the single most common cause of "no internet" issues in home networking. The physical ports look the same, but their roles are as different as a front door and a window. While you can’t swap functions on a basic router without replacing the hardware, you can always diagnose and fix connection errors by checking the color coding, the LED status lights, and ensuring your modem is connected to the designated WAN port.
I recommend keeping your router’s manual handy or checking the sticker on the bottom of the unit for port labels. If you are dealing with complex setups involving multiple ISPs or chain routing, understanding the "loop" dangers is critical.
