You press the power button. Fans spin up. RGB lights glow. But the screen stays black. Your eyes dart to the motherboard, and there it is—a small, ominous red LED light. Before you panic, know this: that light is not a death sentence. It's your motherboard's way of telling you exactly where the problem is. These motherboard diagnostic LEDs have been standard on mainstream boards for nearly a decade, and once you learn to read them, troubleshooting becomes dramatically easier.
I've built and repaired hundreds of systems over the years, and I can tell you this: a red LED light on motherboard is rarely the end of the world. In most cases, it points to a loose connection, a poorly seated component, or a simple configuration issue. This guide walks you through everything—from understanding what each light means to fixing the underlying problem, with brand-specific details for ASUS, MSI, Gigabyte, and ASRock.
Motherboard Red Light Meaning: Decoding the Diagnostic LEDs
Modern motherboards include a set of diagnostic LEDs that illuminate during the Power-On Self-Test (POST) sequence. These lights are your board's built-in troubleshooting system. When everything works, they flash briefly and turn off. When something fails, the relevant light stays lit, telling you which component isn't passing its check.
The Four Main Diagnostic LEDs: CPU, DRAM, VGA, BOOT
Most boards feature four labeled LEDs, each corresponding to a critical subsystem. Here's what each one means:
| LED Label | Component | What It Indicates |
|---|---|---|
| CPU | Processor | CPU not detected, power delivery issue, or CPU initialization failure |
| DRAM | Memory | RAM not detected, improperly seated, or memory training failure |
| VGA | Graphics | GPU not detected, PCIe power issue, or graphics initialization failure |
| BOOT | Storage/Boot Device | No bootable drive found, drive connection issue, or corrupted boot sector |
| A lit LED means that specific component failed its initialization check. It doesn't necessarily mean the component is dead—often, it's a connection or power issue. Think of it like a car's check-engine light: it tells you which system to investigate, not the exact repair needed. |
Brand-Specific Variations: ASUS, MSI, Gigabyte, and ASRock
While the concept is universal, each manufacturer implements these LEDs slightly differently. Knowing your brand's naming convention saves you from confusion.
ASUS — Q-LEDs
ASUS boards use Q-LED indicators, typically located near the 24-pin ATX connector or the DIMM slots. They're labeled CPU, DRAM, VGA, and BOOT, and they behave exactly as described above. On higher-end ROG boards, you'll also find a Q-Code display showing a two-digit hexadecimal POST code—even more precise than the LEDs alone.
MSI — EZ Debug LEDs
MSI's EZ Debug LEDs sit near the 24-pin connector or the top-right corner of the board. They use the same four labels. One quirk I've noticed: MSI boards sometimes hold the CPU LED briefly during normal boot before releasing it. If it stays lit for more than a few seconds, that's when you should worry.
Gigabyte — Status LEDs
Gigabyte boards feature status LEDs near the 24-pin connector. Here's a nuance worth knowing: a solid red light typically indicates a hardware failure, while a blinking light often points to a boot issue. This distinction has saved me hours of unnecessary component swapping.
ASRock — Post Status Checker
ASRock calls theirs Post Status Checker, with the same four LEDs. They're usually positioned near the SATA ports or the bottom edge of the board. ASRock also includes a speaker header for beep codes, which we'll cover later.
One important caveat: while the labels are consistent, the exact location and behavior vary by model. Always check your motherboard manual—most manufacturers include a diagram showing where these LEDs are and what they mean.
How to Fix Red Light on Motherboard: A Step-by-Step Troubleshooting Workflow
Now for the practical part. I've organized this as a workflow that moves from simplest to most complex. Don't skip steps—in my experience, roughly 70% of red light issues are resolved by Step 1 alone.
Step 1: The Basics – Power, Connections, and Seating
Start with the boring stuff. It's not glamorous, but it works.
Check the power supply. Ensure the PSU switch is in the "on" position (the "O" means off, "—" means on—yes, I've seen this trip up experienced builders). Verify the 24-pin ATX cable and the 8-pin (or 4+4 pin) CPU power cable are firmly seated. Both should click into place. A loose CPU power connector is a common cause of the red CPU light, and it's a five-second fix.
Reseat your RAM. This is the single most effective troubleshooting step I know. Unclip the retention arms, remove the sticks, and reinsert them firmly until the clips click. For dual-channel configurations, use slots A2 and B2 (the second and fourth slots from the CPU)—this is the standard recommendation across all major motherboard manufacturers.
Reseat the GPU. Remove the graphics card, then reinsert it into the PCIe slot until the retention clip engages. Also, check the PCIe power cables—both the 6-pin and 8-pin connectors—for a snug fit.
Check NVMe drives. If your boot drive is an M.2 SSD, ensure it's fully inserted and the retention screw is secure. A partially seated NVMe drive can cause a BOOT light.
Consider the power supply itself. A failing PSU can produce a red light on multiple components simultaneously. If you're experiencing random shutdowns, coil whine, or a burning smell alongside the red light, those are classic power supply failure symptoms. Testing with a known-good PSU is the definitive way to rule this out.
Step 2: Component-Specific Fixes (CPU, DRAM, VGA, BOOT)
If the basics don't resolve it, focus on the specific component indicated by the lit LED.
Red CPU Light
This one causes the most panic, but it's often the simplest to fix. Here's my recommended sequence:
- Check the 8-pin CPU power connector at the top-left of the motherboard. Reseat it firmly.

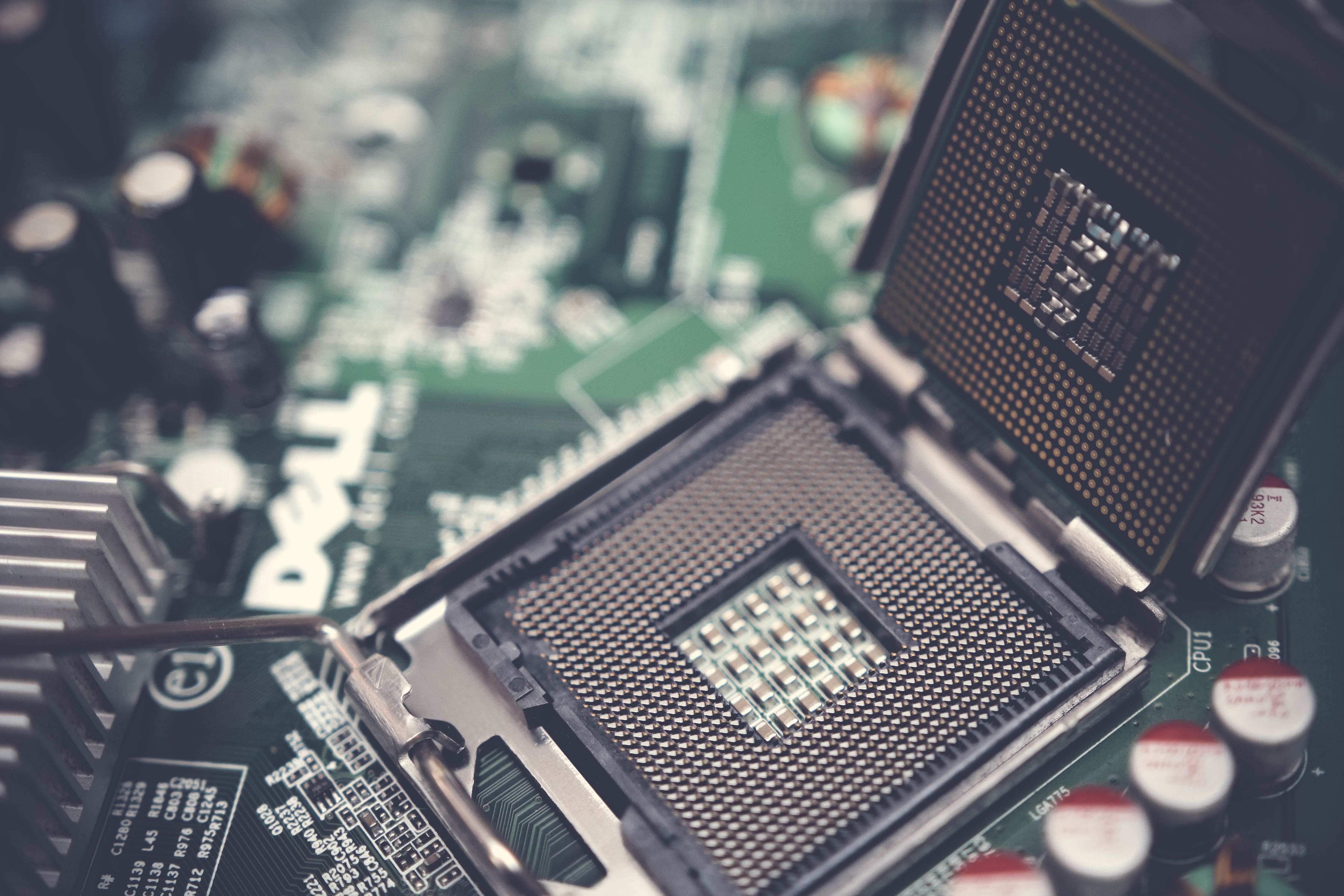

- Reseat the CPU. Unclip the retention arm, lift the CPU out, inspect the socket for bent pins, and reinstall. Bent pins are rare but catastrophic—if you see any, the motherboard needs replacement.
- Check cooler mounting pressure. An overtightened cooler can warp the socket and cause contact issues. Loosen the mounting screws slightly and retest.
- Test with a different CPU if available. A faulty CPU is possible but less common than connection issues.
Red DRAM Light
This is the most common and most fixable issue. In my experience, about 80% of DRAM light cases resolve with reseating alone.
- Reseat all RAM sticks. Remove and reinsert them firmly.
- Try one stick at a time. Remove all but one stick, then test each stick in each slot. This isolates both a faulty stick and a faulty slot.
- Clear the CMOS. This resets the memory training data and often resolves stubborn DRAM issues. We'll cover the exact procedure in Step 3.
- Check for bent CPU socket pins. Yes, bent pins can cause DRAM issues too, since memory controller pins are involved.
Red VGA Light
- Reseat the GPU. Remove and reinsert it into the PCIe slot.
- Check PCIe power cables. Ensure all power connectors on the GPU are firmly attached.
- Try a different PCIe slot. If your motherboard has multiple x16 slots, try the second one. This rules out a damaged primary slot.
- Test with integrated graphics if your CPU has them. Remove the GPU entirely and connect your monitor to the motherboard's display outputs. If the system posts, the GPU is the problem.
Red BOOT Light
This one's different—it means the system has passed CPU, memory, and graphics checks but can't find a bootable drive.
- Check SATA and NVMe connections. Reseat all data and power cables.
- Verify boot order in BIOS. Enter the BIOS (usually by pressing Delete or F2 during boot) and ensure your boot drive is listed first.
- Test the drive on another system if possible. A dead SSD or HDD is a real possibility here.
Step 3: Advanced Troubleshooting – CMOS Reset, BIOS Update, and Beep Codes
If you've made it this far, you're dealing with a stubborn issue. Time to escalate.
CMOS Reset
The CMOS chip stores your BIOS settings, including memory training data. Resetting it clears all custom settings and returns the board to defaults. This resolves a surprising number of red light issues.
There are two methods:
Jumper method: Locate the CMOS clear jumper (usually labeled CLR_CMOS or JBAT1) near the battery or the bottom edge of the board. With the system powered off and the PSU switch off, move the jumper cap from pins 1-2 to pins 2-3 for about 10 seconds, then move it back.
Battery method: Remove the coin-cell battery (CR2032) from the motherboard, wait 5-10 minutes, then reinsert it. This is slower but doesn't require finding the jumper.
After a CMOS reset, you'll need to re-enter your BIOS settings, including enabling XMP/DOCP for your RAM speed.
BIOS Update
A BIOS update can resolve compatibility issues that cause red lights, particularly with newer CPUs or RAM kits. This is a last resort—a failed BIOS update can brick your motherboard.
Each manufacturer has its own flashback feature:
- ASUS: USB BIOS Flashback (labeled on the rear I/O panel)
- MSI: Flash BIOS Button
- Gigabyte: Q-Flash Plus
- ASRock: BIOS Flashback
The general procedure: download the latest BIOS from the manufacturer's website, rename the file as instructed, place it on a FAT32-formatted USB drive, insert it into the designated USB port, and press the flashback button. The system will update the BIOS without needing a CPU or RAM installed.
BIOS Beep Codes
If the LEDs aren't conclusive, your motherboard's speaker header can provide additional clues. BIOS beep codes are audio patterns that correspond to specific errors. For example, on most AMI BIOS systems, one long beep followed by three short beeps indicates a graphics card issue. Check your motherboard manual for the beep code chart.
One more thing: a red light after a BIOS update is a known issue. If you've just flashed your BIOS and hit a red light, perform a CMOS reset first—this resolves the issue in most cases.
Why Is the Red Light on My Motherboard When My PC Is Off?
This question comes up constantly, and it's easy to understand why. You shut down your PC, and there's still a red light glowing on the motherboard. It feels wrong. But in most cases, it's completely normal.
Standby Power and the 'Always-On' LED
When your PC is "off" but still plugged in, the power supply continues to deliver standby power to the motherboard. This is what allows features like Wake-on-LAN, USB charging, and RGB lighting to function. Many motherboards have a small LED that stays lit to indicate this standby power is present.
Here's how to tell the difference:
- Diagnostic LEDs (CPU, DRAM, VGA, BOOT) should be off when the system is off. If one of these stays lit, that's a problem.
- Standby power LEDs are usually small, unlabeled, and located near the 24-pin connector or the rear I/O area. They're designed to stay on.
- Decorative RGB lighting is a separate system entirely. If your motherboard has RGB zones, they may stay lit or cycle through colors when the PC is off—this is configurable in the motherboard software.
If you're unsure whether your board's red light is normal, check the manual. Most manuals include a section on LED indicators that specifies which lights should be on during standby. In my experience, about 90% of "red light when off" concerns turn out to be normal standby indicators.
Preventing Future Red Light Errors: Maintenance and Best Practices
An ounce of prevention is worth a pound of cure—especially when that cure involves disassembling your PC at 11 PM.
Keep it clean. Dust buildup causes overheating and can interfere with component seating. Use compressed air to clean your system every 3-6 months, paying special attention to the CPU cooler, GPU fans, and power supply intake.
Update BIOS carefully. Always download BIOS updates from the manufacturer's official website, not third-party sources. Ensure your system is on a stable power supply—ideally a UPS—before starting a flash. Never interrupt a BIOS update, even if it seems stuck.
Check your standoffs. Motherboard standoffs that are missing or incorrectly placed can cause short circuits. Before installing a motherboard, verify that all standoffs align with the mounting holes and that no extra standoffs are touching the board's underside.
Protect against power fluctuations. A surge protector is the minimum. A UPS (uninterruptible power supply) provides clean power and protects against brownouts, which can corrupt BIOS settings and cause boot failures. This is especially important if you live in an area with frequent electrical storms or unstable grid power.
Monitor your temperatures. Overheating components fail prematurely. Use software like HWiNFO64 or Core Temp to monitor CPU and GPU temperatures. If you notice temperatures creeping up over time, it's time to clean your system or reapply thermal paste.
FAQ
Why is there a red light on my motherboard when my PC is off?
This is almost always a standby power indicator, not an error. When your PC is plugged in but off, the power supply delivers standby voltage to the motherboard, and a small LED indicates this. Check your motherboard manual to confirm—if the light is near the 24-pin connector and isn't labeled CPU, DRAM, VGA, or BOOT, it's likely a power indicator. A diagnostic LED that stays lit when the PC is off is unusual and warrants investigation.
Can RAM cause a motherboard red light?
Yes—a red DRAM light is one of the most common motherboard issues. It indicates that the system can't detect or initialize the memory. The fix is usually simple: reseat the RAM sticks, try one stick at a time in different slots, and clear the CMOS. In my experience, this resolves the vast majority of DRAM light cases without needing replacement parts.
How do I fix a red CPU light on my motherboard?
Start with the simplest checks: ensure the 8-pin CPU power connector is firmly seated, then reseat the CPU and inspect the socket for bent pins. Check that your CPU cooler isn't overtightened. If the issue persists, it could be a faulty CPU or motherboard—testing with known-good spare parts is the definitive way to isolate the problem.
Is a red light on motherboard always a problem?
No. When the PC is off, a red light is often a standby power indicator. When the PC is on, a solid red light typically indicates a hardware failure, but a blinking light might just be part of the normal boot sequence. The key is knowing which light you're looking at and what your specific motherboard manual says about it.
Final Thoughts
The red LED light on your motherboard is a diagnostic tool, not a curse. It's your board's way of saying, "Hey, look here—this is where the problem is." The location-based approach—CPU, DRAM, VGA, BOOT—turns a potentially overwhelming troubleshooting session into a focused, manageable process.
In my years of building and repairing systems, I've seen this simple system save countless hours of guesswork. The most common fixes are also the simplest: reseating components, checking power connections, and clearing the CMOS. Before you panic or start buying replacement parts, work through the steps in this guide. You'll be surprised how often the problem is a loose cable or a RAM stick that just needed a firm push.
